For auditoria, churches, event halls, broadcast rooms, multipurpose halls, lecture theatres and live venues — where the system has to handle real programme material, real musicians and real dynamics, not just announcements.
Microphones and wireless
GM-50 condenser supercardioid square-tube microphone · BT1 pen-type 2.4G wireless teaching microphone with USB receiver, designed to pair with IP network terminals · true-diversity UHF wireless systems with automatic frequency scanning — specify handheld, lapel, headset or gooseneck.
Powered mixers
Mixer and amplifier in one chassis: connect sources and passive speakers and the system is complete. Built-in USB player with recording, Bluetooth receiver and digital effects, with large dynamic range and low noise. Suited to weddings, conferences, multipurpose halls, mobile sound reinforcement and band performance.
PMX-U6, PMX-U8, PMX-U12 and PMX-U16 with 16-bit digital effects · PMX-H8 and PMX-H12 with 24-bit digital effects.
Mixers and automatic microphone mixers
MG-801 eight-channel intelligent automixer for conference rooms, studios, multimedia classrooms, radio stations, lecture halls and courtrooms · MG-831 twelve-channel multi-function mixer with eight mixing microphone inputs, dual host microphone inputs and two auxiliary audio inputs.

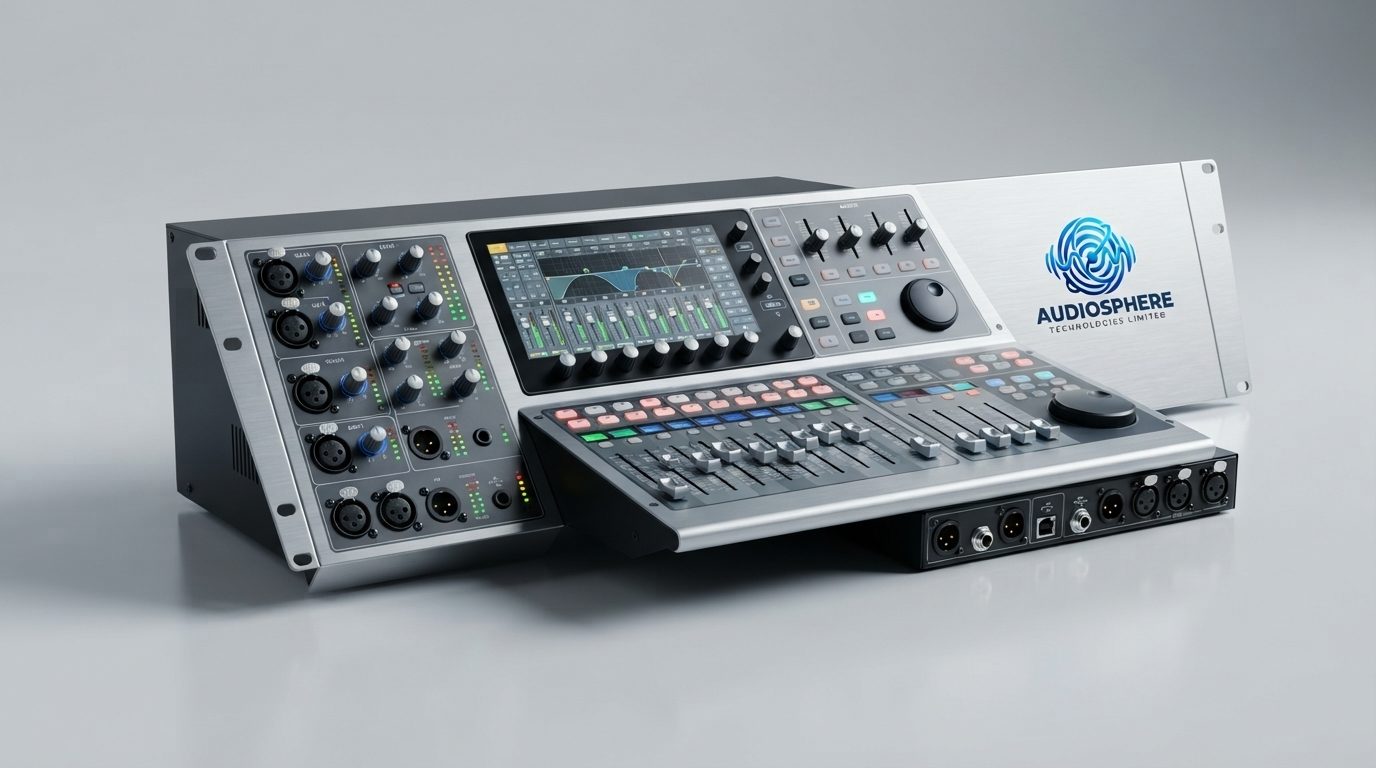

Digital mixing consoles
MX-D12C twelve-channel with dual-core 1.2 GHz processing, USB playback of APE, FLAC, MP3 and WAV, and single-track recording · MX-D18C eighteen-channel · MX-D18C+ eighteen-channel with automatic mixing · MX-D20 and MX-D20 II with a 10-inch touchscreen · MX-D24 II with a 7-inch touchscreen, built-in DSP and instant recall of 24 digital scenes · MX-D32 with 32 XLR analogue inputs, up to 32 digital inputs, 16 XLR mix bus outputs and AES stereo digital output · RMX-D14 rack-mount digital mixer.
Dante audio networking
Dante carries multichannel audio over standard network cable with low latency and no loss of fidelity, and all interface boxes carry redundant Dante modules so a single failure does not silence the system.
DT-22R 2-channel, DT-44R 4-channel, DT-88R 8-channel, DT-168R 16-in/8-out and DT-816R 8-in/16-out cabinet-type interface boxes · DT-22BOX II and DT-44BOX II portable interface boxes · DT-3232M 32-channel Dante card with onboard processing.
Media matrix and room control
MDS-1000 digital media matrix, the core of fixed-installation commercial audio and music systems · MDS-3RM microphone workstation controlling from 1 to 192 output zones · MDS-1RC wall touch panel with a 4.3-inch screen and 24 preset scenes · MDS-2RC wall control panel · DAP-2416M-DT and DAP-3232M-DT network media matrices with Dante, 32-bit DSP, 96 kHz sampling and 24-bit conversion.
Audio processors
DAP-0206 II audio processor with two balanced inputs and six balanced outputs, 96 kHz sampling, 32-bit DSP and 24-bit conversion · KP-300 theatre decoding effector with dual DSP, 7.1 output, three HDMI inputs to HDMI 2.0 at 4K60, optical and coaxial digital input and Bluetooth.
Power amplifiers and power sequence controllers
A rack that switches on in the wrong order damages equipment and startles a room. Sequencers stagger the load and protect the chain.
SP-6108 PRO eight-channel sequencer with a 2-inch colour LCD · SP-6212E II twelve-channel programmable purification power distributor with behaviour learning, DC trigger output, I/O level control and RS485/RS232 · DPS-8015 sequence 24VDC power distributor · full professional power amplifier range — state channels and power required.
Professional and waterproof loudspeakers
T-10-WP single 10-inch passive two-way full-range waterproof speaker · T-12-WP single 12-inch waterproof full-range speaker · T-153-DWP dual 15-inch active two-way waterproof speaker · L-212-DPA dual 12-inch two-way active line array, max SPL 133 dB (139 dB peak) at one metre, 8 ohm, 900W bass / 200W treble · T-series pro-speakers · L-series line array · MHS-series remote horn speakers · active professional speaker range.
