One control panel that dims the lights, drops the screen, selects the source and sets the volume. Behind it, a matrix that routes any input to any output without dropout or delay. For control rooms, command centres, boardrooms, lecture theatres, courtrooms and operations centres.
Central control hosts and panels
MVX-7000 audio and video central control integrated machine, combining video, audio, central control and power amplification in a single chassis · CP-2000 programmable central control host · SSL-W8PRO eight-button self-programming controller with three RS232 ports, one RS485 port and three infrared transmitters · SSL-TS8 embedded touch screen using a 7-inch TFT true-colour industrial display at 1024 x 600.

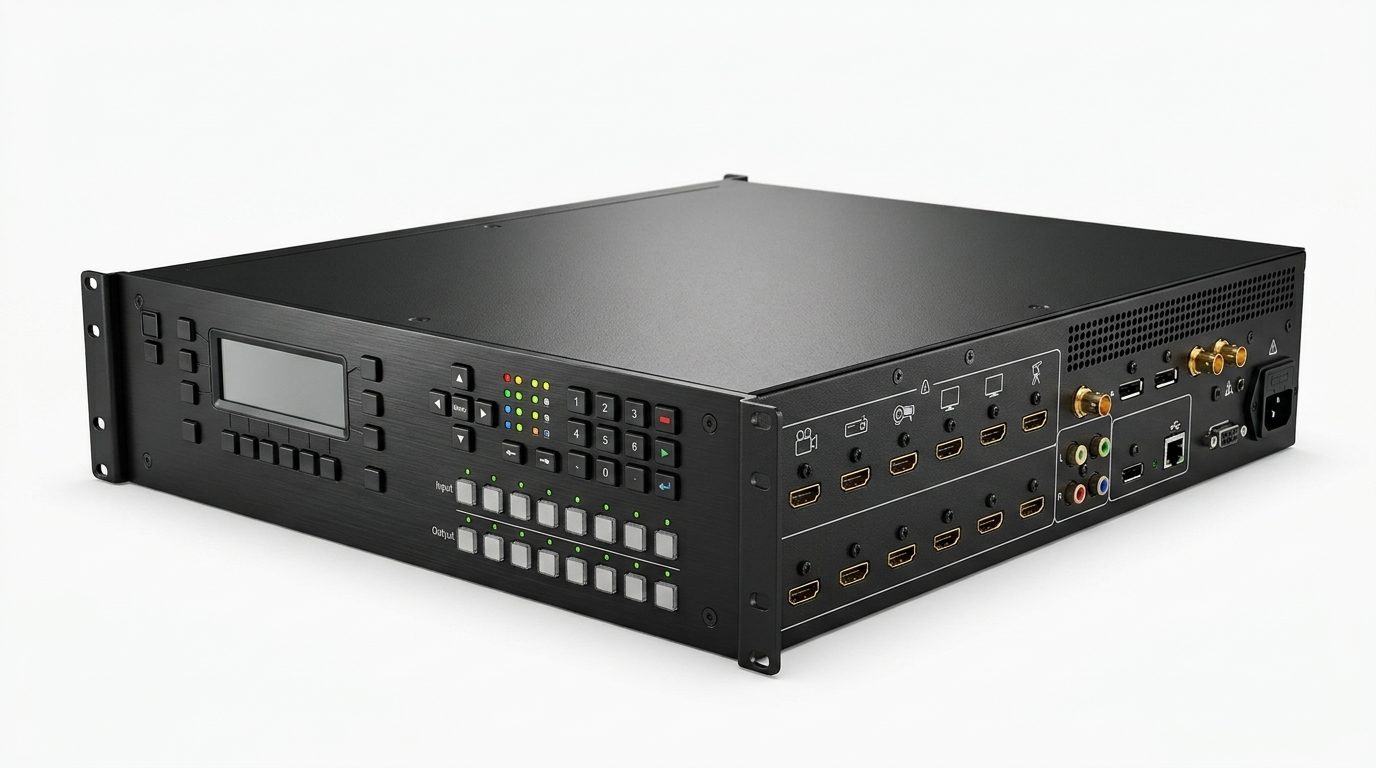

XTP seamless HD intelligent matrix hosts
Embedded pure-hardware architecture with no switching signal loss and no delay, in four frame sizes.
XTP-HD0808 (8-in, 8-out) · XTP-HD1616 (16-in, 16-out) · XTP-HD3232 (32-in, 32-out) · XTP-HD6464 (64-in, 64-out).
Input and output cards
Populate the frame to match the signals on site:
XTP-HDMI-4IN and 4OUT with EDID learning · XTP-4KHD-4IN and 4OUT · XTP-4KHDMI-4IN and 4OUT supporting up to 4096 x 2160 at 60 Hz · XTP-HDBT-4IN and 4OUT for twisted-pair distribution · XTP-4KBT-4IN and 4OUT 4K HDBaseT · XTP-UFS-4IN and 4OUT optical fibre to 1080P · XTP-4KUFS-4IN and 4OUT 4K fibre · XTP-SS-4IN and 4OUT supporting SDI, HD-SDI and 3G-SDI · XTP-DS-4IN and 4OUT DVI, compatible with HDMI 1.3 and HDCP 1.4 · XTP-VGA-4IN and 4OUT with stereo audio, upscaling to 1080P or 1920 x 1200.
